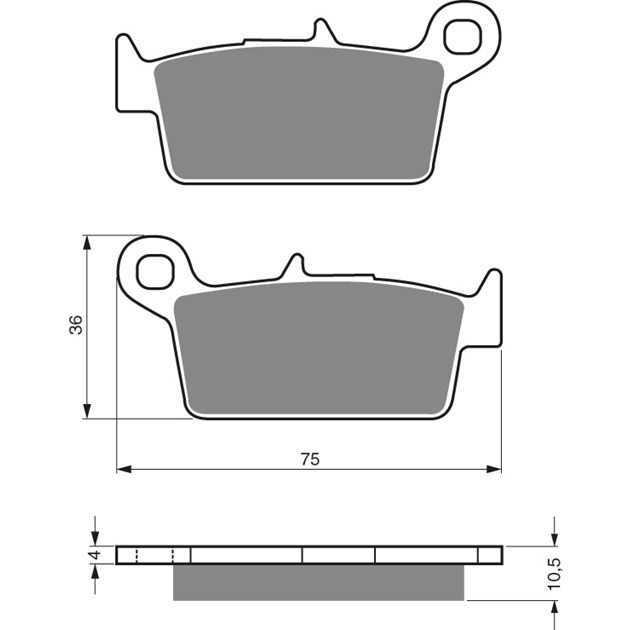

Brake plates Goldfren 003 S3

AJP
PR5 250 Supermoto 09 R            F -front, R -rear
PR5 250 Enduro 09 R

CPI
125 Sauel R

GAS-GAS
EC 125 /200/250/300 00 - 08 R
125 Pampera (2T) 05 - 08 R
EC 200 /250/300 Enduro 99 - 00 R
MX 125 / 250 (MC) 01 - 08 R
MX 200 /250/300 99 - 00 R
SM 125 /250/400 FSE 02 R
SM 125 /250 (2T) 01 - 06 R
SM 125 (2T) Supermotard 03 - 06 R
SM 125 Halley 09 R
125 Trail Halley 09 R
400 Pampera 06 R
SM 400 FSE (2T) 01 - 02 R
EC 450 FSR/FSE Enduro (4T) 05 - 09 R
450 Pampera (4T) 07 - 08 R
SM 450 FSR (4T) Supermotard 07 - 09 R
SM 450 Halley 09 R
450 Trail Halley 09 R
EC 515 FSR/FSE Enduro (4T) 05 - 09 R
SM 515 FSR (4T) Supermotard 07 - 09 R

GOES
G 125 XM 08 - 09 R
G 250 XM 08 - 09 R

HONDA
CB 50 V/W Dream 50 97 98 R
XR 50 M5 (AD14) Motard 05 R
NSR 50 RV/RW/RX/RY 97 - 00 R
NSR 50 V (AC10-180) 97 R
SRX 50 T/W/X „Joker/Shadow“ 97 - 99 F
NSR 75 N/P/R/X/Y (NS-1/NSR 80) 92 - 00 R
CR 80 RN/RP/RR/RS/RT/RBT/RV/RBV/ RW/RBW/RX/RBX/RY/RBY/R1/ RB1/R2/RB2 92 - 02 R
NSR 80 J-2/K/L/N/P/R/S (HC06) 88 - 93 R
NSR 80 V (HC06-170) 97 R
NSR 80 X (HC06-180) 99 R
CR 85 R3/RB3/R4/RB4/R5/RB5/R6/
RB6/R7/RB7 03 - 07 R
Lead 90 88 F
NH 90 M/P/R 91 - 94 F
NH 90 M/P/R Yuppy 95 - 97 R
SRX 90 T/W/X „Shadow“ 97 - 99 F
XR 100 MS (HD13) Motard 05 R
CR 125 /250/500 RH/RJ/RK/RL/RM/RN/ RP/RR/RS/RT/RV/RW/RX/RY/R1 87 - 01 R
CRF 230 L 08 - 10 R
CRF 230 M Supermoto 09 - 10 R
SL 230 „Free Landsports“ (MD33) V/W/X/1 97 - 01 R
CRM 250 R (RM) MK2/MD24 (120001-1211634) 91 - 92 R
CRM 250 R (RP-RP-11) MK2/2 (MD 24 1300001-) 93 R
CRM 250 „Active Radial“ (MD32) ARV/ARW 97 - 98 R
XL 250 RL 90 R
XLR 250 RM/R3N/RP/RR/R3R (MD22) 91 - R
XR 250 RL/RM/RN/RP/RR/RS 90 - 95 R
XR 250 RT/RV/RW/RX/RY/R1/R2/R3/R4 96 - 04 R
XR 250 Y/3 (MD30) 00 - 03 R
XR 250 3/5 (MD30) Motard 03 - 05 R
XR 250 III Y/3 Baja 00 - 03 R
XR 300 R10 10 R
NX4 400 Falcon 02 - 05 R
XR 400 RT/RV/RW/RX/RY/R1-R5 96 - 05 R
XR 400 M (ND08/NC38E) Supermotard 06 - 08 R
XR 600 RM/RP/RR/RS/RT/RV/RW/ RX/RY 91 - 00 R
XR 650 RY/R1-R6 00 - 06 R
XR 650 L 93 - 12 R

HONDA DALL‘ARA
XR 250 R 04 R
XR 650 R 04 R
HONDA HM (Italy)
CR 85 R/R2 03 - 07 R
CRE 250 F 250 R 08 - 09 R

HYOSUNG
RX 400 05 R
HUSQVARNA
WXE 125 07 R

KAWASAKI
KX 125 K2-K5/L1/L2/L3/L4/M1/ M2/M3/M6F-M8F 95 - 08 R
KLX 250 J1-J6 D-Tracker 98 - 03 R
KLX 250 H6F/H7F 06 - 07 R
KLX 250 S9F/SAF/SBF/SCF/SDF/SEF 09 - 15 R
KX 250 K2-K5/L1/L2/L3/L4/M1/M2/ R1/R6F-R8F 95 - 08 R
KLX 300 A2/A3/A4/A5/A6/A7/A8/A9/ A10/A6F/A7F 97 - 07 R
KLX 400 R (KLX 400 B1/B2) 03 - 04 R
KX 500 E8-A16 96 - 04 R

PEUGEOT
SV 50 80/125 Geo 93 F

SUZUKI
DR 125 SMK8/SMK9/SML0 08 - 12 R
RM 125 T/V/W/X/Y/K1-K9 96 - 12 R
RM 125 XCK8 09 R
RM 250 T/V/W/X/Y/K1-K9 96 - 12 R
RM 250 XCK8 09 R
RMX 250 ST/SV/SW/SX (SJ14A) 96 - 99 R
SBK2 250 (LX 250 L) 02 R
DR-Z 400 SEY/EY/Y/SEK1/EK1/K2/SEK2/ EK2/K3/SEK3/EK3/K4/SEK4/ EK4/EK5/SK5/SK6/K6/SK7/K7/ EK7/SK8/SK9 00 - 09 R
DR-Z 400 SMK5/SMK6/SMK7/SMK8/ SMK9 05 - 09 R

TM
MX 85 JR 02 - 04 R
MX 85 (Big Wheel) 02 - 04 R
MX 125 (2T) 01 - 04 R
EN 125 Enduro (2T) 01 - 04 R
MX 250 (2T) 01 - 04 R
EN 250 Enduro (2T) 01 - 04 R
EN 250 F (4T) Enduro 04 R
SM 250 02 R
SME 250 (4T) 04 R
MX 250 Cross (4T) 02 - 04 R
MX 300 (2T) 01 - 04 R
EN 300 Enduro (2T) 01 - 04 R
MX 400 Cross (4T) 02 - 03 R
SM 400 03 - 03 R
SME 400 (4T) 04 R
EN 450 F (4T) 04 - R
MX 450 F (4T) 04 - R
530 Cross (4T) 02 - 03 R
EN 530 F (4T) 04 - R
SM 530 02 - 03 R
SME 530 (4T) 04 R

YAMAHA
YZ 125 K/L/M/N/P 98 - 02 R
YZ 250 K/L/M/N/P/R/S/T/V/W 98 - 02 R
YZ 250 FN/FP (4T) 01 - 02 R
WR 250 ZK 98 R
WR 250 FN/FP (4T) 01 - 02 R
WR 400 FL/FM/FN 99 - 01 R
YZ 400 FL 99 R
WR 426 FN/FP 01 - 02 R
YZ 426 FM/FN/FP 00 - 02

For riders who ride harder and want great stopping power.

Friction materials include metal-ceramic with bronze-graphite particles,

suitable for dry and wet environments, coarser non-metallic friction additives for optimal friction properties.

- can withstand higher temperatures than the AD mixture

- high coefficient of static friction

- good abrasion resistance

- high braking performance up to 450 ° C (max. 800 ° C)

- high braking power

- very low impact on brake discs

- less wear than other boards

link to the online catalog of plates by motorcycle

http://goldfren.cz/katalog-online-cz.html

The Goldfren company has been on the world market in the field of brake parts since 1991. During its existence, it has become one of the largest manufacturers. In recent years, it has managed to expand the production line of sintered brake linings from the motorcycle industry to brake linings for aircraft, cranes, mountain bikes, sidecars and motor sports, thanks to the development of new materials, tests and trials.

The company still intensively continues development based on individual customer requirements in order to satisfy them as much as possible and be competitive in the world.

The brake plates are characterized by a high and constant coefficient of friction up to temperatures of 800°C and thermal stability with minimal abrasion. The materials do not contain asbestos, glass fibers, formaldehyde and are environmentally friendly. Compared to organic friction materials, they have a several times longer service life.
