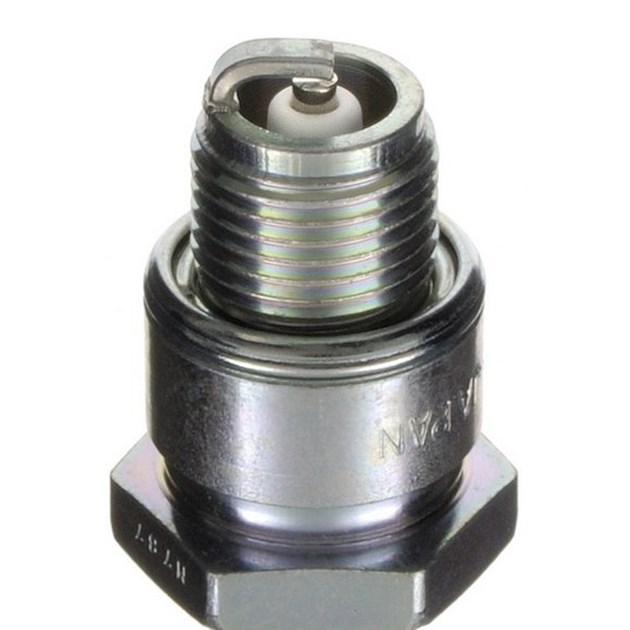

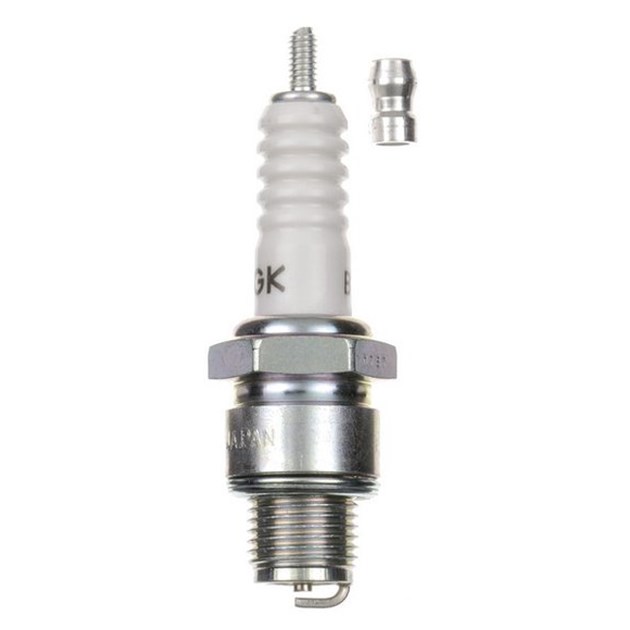

NGK B7HS spark plug

Manufacturer: NGK SKU: NGK*B7HS

Spark plug NGK B7HSkey size: 20.8 mmexternal thread [mm]: 14.0fiber diameter [mm]: 12.7spark plug: unscrewable SAE-endspark placement [mm]: 1.0spark p Show all

In stock 2 pieces

Description chevron1 Download chevron1 Application table chevron1

Spark plug NGK B7HS

key size: 20.8 mm

external thread [mm]: 14.0

fiber diameter [mm]: 12.7

spark plug: unscrewable SAE-end

spark placement [mm]: 1.0

spark plug: Nickel - middle electrode

spark plug: External electrode

spark plug: not disturbed

spark plug: with flat sealing seat

Motocykly

Beta
MiniCross 50 R10 [2005-2006]
MiniCross 50 R10 [2007]
MiniCross 50 R10 [2008-2009]
MiniCross 50 R10 [2010–2011]
MiniCross 50 R12 [2005-2006
MiniCross 50 R12 [2007]
MiniCross 50 R12 [2008-2009]
MiniCross 50 R12 [2010]
MiniCross 50 R12 [2011]
Minitrial 50 [2009]
Minitrial 50 [2010]
Minitrial 50 [2011]
Minitrial 50 MF2TC [2003]
Minitrial 50 MF2TC [2004]
Minitrial 50 MF2TC [2005]
Minitrial 50 MF2TC [2006]
Minitrial 50 MF2TC [2007]
Minitrial 50 MF2TC [2008]

Ducati
GTL 500 DM500GT [1976-1978]
GTV 500 DM500GT [1977-1978]
GTV 500 DM500GT [1979-1980]
Pantah 500 TL []

KTM
RSL 50 AC 50RS-5 [-1980]

Suzuki
RV 125 Van Van RV125 [1976]
RV 125 Van Van B RV125 [1977-1981]
RV 125 Van Van K RV125 [1973]
RV 125 Van Van L RV125 [1974]
RV 125 Van Van M RV125 [1975]
TS 125 K TS125 [1973]
TS 125 L TS125 [1974]
TS 125 M TS125 [1975]
GT 185 A GT185 [1976]
GT 185 B GT185 [1977]
GT 185 C GT185 [1978]
GT 185 E C GT185 [1978]
GT 185 K GT185 [1973]
GT 185 L GT185 [1974]
GT 185 M GT185 [1975]
GT 500 A T500 [1976]
GT 500 B T500 [1977-1979]

Yamaha
DT 50 MX 13N 13N [1982-1985]
RD 50 MX 13M 13M [1982-1984]
FS 80 SE 5A7 5A7 [1981-1984]
RD 80 MX 5G1 5G1 [1981]
RD 80 MX 5G1 5G1 [1982-1984]

Cagiva
City 50 AC Lucky Explorer [1995]
City 50 AC Lucky Explorer [1996]
City 50 AC Lucky Explorer [1997]
City 50 AC Lucky Explorer 4P [1992]
City 50 AC Lucky Explorer 4P [1993]
City 50 AC Lucky Explorer 4P [1994]

NGK standard spark plugs are designed for longer life and optimal performance

Plating with a trivalent metal provides excellent anti-corrosion and anti-adhesion properties

Wavy ribs prevent skipping

Pure aluminum silicate ceramic insulator provides excellent strength and better heat transfer

Copper core helps in heat dissipation

Triple seals prevent leakage

The combination of letters and numbers given on each NGK spark plug is not only a type designation, but mainly a logical formula containing important detailed information about the function of the spark plug.

With this formula, NGK has standardized its entire range and is thus able to clearly determine the specific properties of the respective products.

This again simplifies handling and the correct choice of NGK spark plugs both in the original equipment of the manufacturers and also later in the shop, in the workshop and with customers.

A typical designation is:

The combination of letters (1-4) before the heat value gives information about the diameter of the thread, the size of the hex key and the type of construction.

The 5th position (numerical value) indicates the heat value.

The 6th letter indicates the thread length.

The 7th letter contains data on the special design features of the spark plugs.

The 8th position is again a number in which the electrode distance is coded.
