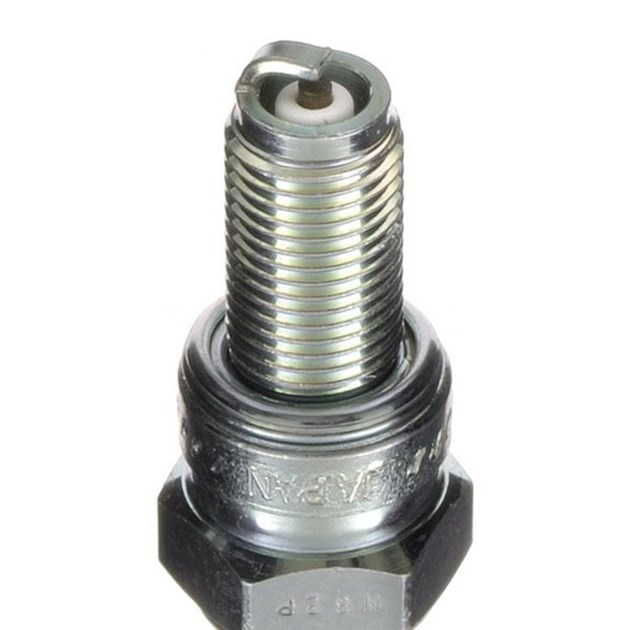

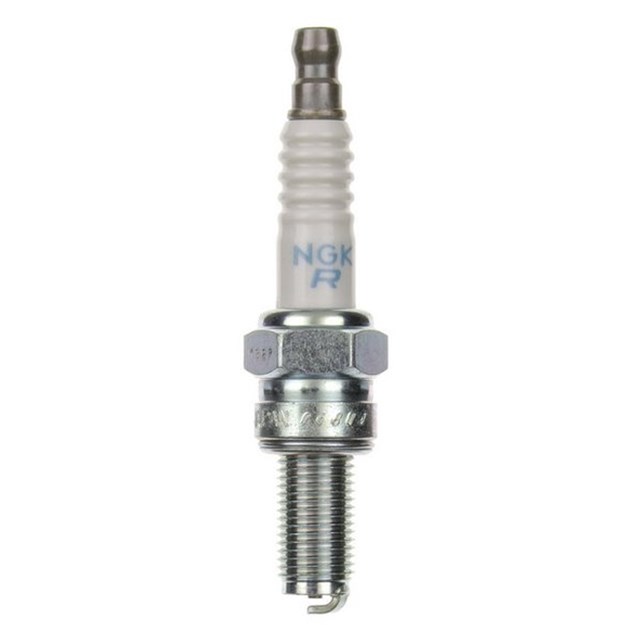

NGK CR8EB spark plug

Key size: 16 mm

Thread diameter: 10.0 mm

Thread length: 19.0 mm

Distance between electrodes: 0.8 mm

On

APRILIA-SCARABEO 125, SCARABEO 200, SCARABEO 250, SPORTCITY 50 (03-11);

ARCTIC CAT-BEARCAT 3000 LT, NORSEMAN 3000, NORSEMAN 3000 ES, PANTERA 3000, WILDCAT SPORT, WILDCAT SPORT LIMITED, WILDCAT SPORT SE, WILDCAT SPORT XT, WILDCAT TRAIL, WILDCAT TRAIL LIMITED, WILDCAT TRAIL SE, WILDCAT TRAIL XT, ZR 3000, ZR 3000 LXR (17-19); CAN-AM-MAVERICK X3 900 HO, RYKER 600 ACE, RYKER 900 ACE, RYKER RALLY EDITION (18-19);

HUSQVARNA-SM 630, SMR 450, SMR 510, SMS 630, TC250 02-08, TC450 03-10, TC510, TE250 02-07, TE310, TE450 03-10, TE510, TE630, TXC 250, TXC 450 08-11 , TXC 510 09-10;

KAWASAKI-KX250F (04-05);

PIAGGIO-FLY 150(2016); POLARIS-HAWKEYE 2X4, HAWKEYE 4X4, SPORTSMAN 300 (06-11);

SUZUKI-LT-R450 QUADRACER, RMZ250 (04-06);

VESPA-946, ET2, ET4, GT 200 GRANTURISMO, GT200, GTS 250, GTS 300 SUPER, GTV 250, LX 150, LX 50, LXV 150, S 150, SPRINT 150 (13-17)

The combination of letters and numbers given on each NGK spark plug is not only a type designation, but mainly a logical formula containing important detailed information about the function of the spark plug.

With this formula, NGK has standardized its entire range and is thus able to clearly determine the specific properties of the respective products.

This again simplifies handling and the correct choice of NGK spark plugs, both in the original equipment of the manufacturers, and also later in the shop, in the workshop and with customers.

A typical label is:

The combination of letters (1-4) before the heat value gives information about the diameter of the thread, the size of the hex key and the type of construction.

The 5th position (numerical value) indicates the heat value.

The 6th letter indicates the thread length.

The 7th letter contains data on the special design features of the spark plugs.

The 8th position is again a number in which the electrode distance is coded.
