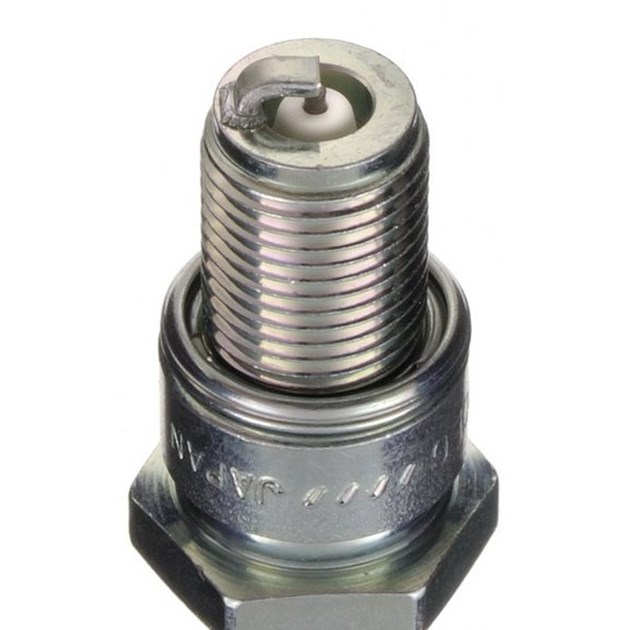

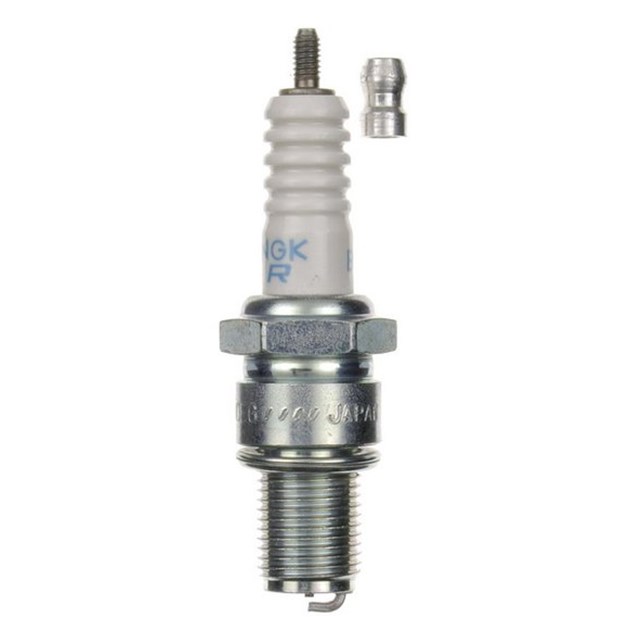

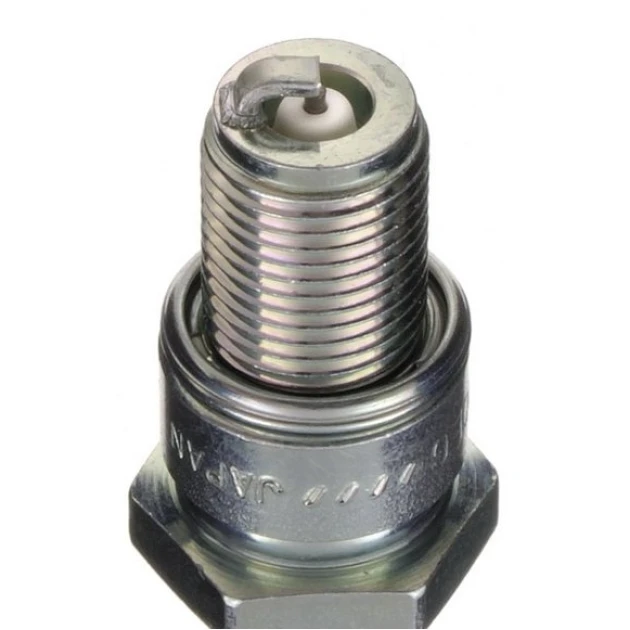

NGK BR10EG spark plug
Manufacturer: NGK
SKU: NGK*BR10EG
Details:key size: 20.8 mmexternal thread [mm]: 14.0fiber diameter [mm]: 19.0spark plug: unscrewable SAE-endspark placement [mm]:1.0spark plug: Nickel Show all
In stock 1 piece
Details:
key size: 20.8 mm
external thread [mm]: 14.0
fiber diameter [mm]: 19.0
spark plug: unscrewable SAE-end
spark placement [mm]:1.0
spark plug: Nickel - middle electrode
spark plug: External electrode
spark plug: suppressed, 5 kOhm
spark plug: with flat sealing seat
Honda CR 80 86-02
NGK standard spark plugs are designed for longer life and optimal performance
Plating with a trivalent metal provides excellent anti-corrosion and anti-adhesion properties
Wavy ribs prevent skipping
Pure aluminum silicate ceramic insulator provides excellent strength and better heat transfer
Copper core helps in heat dissipation
Triple seals prevent leakage
The combination of letters and numbers given on each NGK spark plug is not only a type designation, but mainly a logical formula containing important detailed information about the function of the spark plug.
With this formula, NGK has standardized its entire range and is thus able to clearly determine the specific properties of the respective products.
This again simplifies handling and the correct choice of NGK spark plugs, both in the original equipment of the manufacturers, and also later in the shop, in the workshop and with customers.
A typical designation is:
The combination of letters (1-4) before the heat value gives information about the diameter of the thread, the size of the hex key and the type of construction.
The 5th position (numerical value) indicates the heat value.
The 6th letter indicates the thread length.
The 7th letter contains data on the special design features of the spark plugs.
The 8th position is again a number in which the electrode distance is coded.
Honda CR 80 R
2002 a starší
Honda CR 85 R
2003
2004
2005
2006
2007
KAWASAKI KX 100
2002 a starší
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
KAWASAKI KX 65
2002 a starší
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
KAWASAKI KX 85
2002 a starší
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
KTM 65 SX
2002 a starší
2003
2004
2005
2006
2007
2008
Suzuki RM 65
2003
2004
2005
Suzuki RM 85
2002 a starší
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
Yamaha YZ 85
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
